ADG758BCPZ-REEL7 na'urar canjin analog mai inganci sosai daga kamfanin Analog Devices, Inc. (ADI). An ƙayyade shi a matsayin na'urar Interface - Canjin Analog, Multiplexers, Demultiplexers, kuma an tsara ta don magance ƙalubale daban-daban na ƙira, ciki har da saurin canzawa cikin sauri, ƙarancin ƙarfi a yanayin aiki, da ƙarancin shigarwar cajin fitarwa.
Main abubuwan da ke nuna ADG758BCPZ-REEL7 sun haɗa da:
Ayyuka: Canjin multiplexer/demultiplexer na 7:1 wanda zai iya canza sigina na analog da kyau da kyau. An inganta wannan na'ura don aikace-aikace masu buƙatar saurin canza sigina cikin sauri da ƙaramin hayaniya.
Manyan ƙalubalen ƙira da aka magance: ADG758BCPZ-REEL7 na magance ƙalubale kamar buƙatar saurin canjawa mai sauri, ƙaramin ƙarfi a yanayin aiki, da ƙarancin shigarwar cajin, waɗanda ke mahimmanci don tsare ingancin sigina a cikin ƙirar analog.
Bayani na fasaha:
Yankin yanayin zafi na aiki: -40°C zuwa 85°C
Yankin tashar wutar lantarki: 1.8V zuwa 5.5V
Ƙarfin ƙarfi a yanayin aiki (max): Ohm 4.5
Yawan bandwidth na -3dB: MHz 55
Cajin shigarwa: pC 3
Kula da tashar: CS(off): pF 13, CD(off): pF 85
Crosstalk: -80dB @ MHz 1
Amfaninta:
Ingantaccen aiki na canjin sigina tare da saurin canzawa cikin sauri da ƙaramin ƙarfi a yanayin aiki
Rage hayaniya da ɓangaren hayani saboda ƙaramin cajin shigarwa da crosstalk
Yawan ɗaukar tashoshin wutar lantarki wanda zai dace da dama daga cikin na'urorin analog
Dacewa:
ADG758BCPZ-REEL7 na dacewa da dama daga cikin tsarin ƙira na analog da na'urorin, ciki har da ɗaukar bayanai, na'urorin gwaji, da tsarin sadarwa.
Fannin Aikace-aikace:
ADG758BCPZ-REEL7 ya dace da aikace-aikace kamar kayan gwaji da na'aura, na'urar masana'antu, canji na sauti/video, da wasu tsarin sarrafa siginar analog.
Samfuran Maimaitawa:
Sauran samfuran daga Analog Devices, Inc. waɗanda ke bayar da aiki da ƙwarewa iri ɗaya sun haɗa da:
ADG759BCPZ-REEL7: Multiplexer/demultiplexer na 8:1 tare da ƙayyadaddun bayanai kaɗan daban
ADG751BCPZ-REEL7: Multiplexer/demultiplexer na 4:1 tare da ɗan kusanci na aikin
ADG787BCPZ-REEL7: Multiplexer/demultiplexer na 8:1 tare da bandwidth mai yawa da ƙaramin ƙarfi a yanayin aiki
ADG758BCPZ-REEL7 Manyan Halayen Fasaha
ADG758BCPZ-REEL7 yana da fasali na musamman ciki har da tsarin multiplexers/demultiplexers na 7:5, da rashin haƙuri mai ƙanƙanta na Ohm 4.5, tare da damar sarrafawa ta bandwidth har zuwa 55MHz. Yana aiki a wutar lantarki tsakanin 1.8V zuwa 5.5V na guda ko kuma kuma tare da biyu ±2.5V, yana ba da ƙarin sassauci. Hakanan, yana da ƙananan crosstalk na -80dB a 1MHz, wanda ke hana haɗakar raƙumi tsakanin tashoshi.
ADG758BCPZ-REEL7 Girman Kunshin

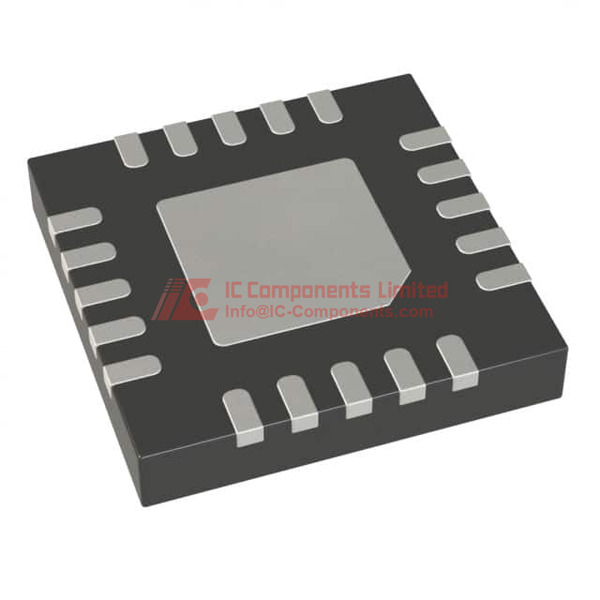

Kunshin ADG758BCPZ-REEL7 yana da irin LFCSP-20 da kwayar lantarki mai girman 4x4 mm, an shirya shi cikin hanyar Cut Tape (CT) don sauƙin ɗauka da shigarwa cikin na'urori.
ADG758BCPZ-REEL7 Aikace-aikace
Ana amfani da ADI ADG758BCPZ-REEL7 sosai a cikin tsarin tattara bayanai, tsarin sadarwa, da kayan aikin lafiya inda sarrafa siginar analog mai daidaito yake da mahimmanci, kamar su kayan aikin likitanci da na'ura mai kwakwalwa.
ADG758BCPZ-REEL7 Fasali
Falalar wannan samfur suna haɗa da ƙirar multiplexers/demultiplexers mai sassauci tare da tsarin 7:5, ƙaramin resistance na ciki na 4.5 Ohm, bandwidth mai faɗi har zuwa 55MHz, ƙarancin crosstalk na -80dB a 1MHz, da damar aiki tare da manyan ƙarfin lantarki guda ɗaya ko biyu, wanda ke ba da sassauci sosai a cikin yanayin wutar lantarki da yawa.
ADG758BCPZ-REEL7 Siffofin Inganci da Tsaro
Ana tabbatar da cewa wannan na'ura ta cika ka'idojin RoHS, mai tabbatar da kiyaye muhalli da aminci. Har ila yau, tana da matakin Sensitivity Moisture Level (MSL) na 3, wanda ke ba da damar jurewa yanayi na danshi na tsawon sa'o'i 168 ba tare da lalacewa ba, yana tabbatar da inganci da kwanciyar hankali.
ADG758BCPZ-REEL7 Dacewa
ADG758BCPZ-REEL7 na da dacewa da nau'ikan sigina daban-daban saboda iyakar wutar lantarki mai faɗi da ƙira mai ƙarfi, wanda ke sa ya dace da aikace-aikace daban-daban na lantarki da na'urori masu zaman kansu.
ADG758BCPZ-REEL7 Takaddar Bayanai PDF
Domin samun cikakken bayani da sabbin bayanai na ADG758BCPZ-REEL7, zaku iya sauke takardar bayanan fasaha ta hukuma daga shafin yanar gizon mu. Wannan takarda na ƙunshe da bayanai masu yawa masu muhimmanci domin haɗa shi cikin ayyukanku da kuma amfanin ƙwarai.
