MAX9720BEUE+T kayayyakin haɓaka ci gaba na fasaha nake, kuma an ƙera su musamman don amfani da su a kan na'urorin jin kai na kunne. Wannan na'ura tana cikin jerin Maxim Integrated na DirectDrive da SmartSense, suna ba da mafita mai ƙarfi kuma mai kwanciyar hankali don inganta sautin kunne.
Wannan amplifaya masu aji Class AB yana da tsarin hanyoyi biyu (stereo), yana samar da har zuwa 50mW na ƙarfi na fita a kowane tashar zuwa nauyin ohm 32. An tsara shi da ƙaramin ƙarfin wuta, MAX9720BEUE+T na aiki daga ƙarfin lantarki daga 1.8V zuwa 3.6V, wanda ya dace da na'urori masu ɗauka kamar wayoyin salula da na'urar baturi.
Nyannan amplifaya na warware manyan matsalolin ƙira ta hanyar haɗa fasali na musamman kamar Depop, kariya daga gajeren hanya, kariya daga zafin jiki, da kuma aikin kashewa. Waɗannan fasali na tabbatar da dorewa da amincin na'ura, suna kare na'urar da ƙusan kunne daga yiwuwar lahani.

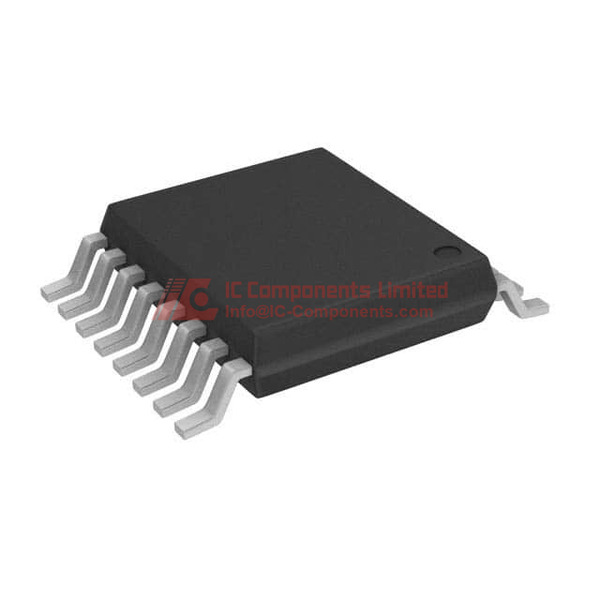

MAX9720BEUE+T yana cikin ƙaramin faranti na 16-TSSOP (Thin Shrink Small Outline Package), wanda ke sauƙaƙa haɗin surface-mount akan allon lantarki. Hakanan, ya dace da ƙa'idodin muhallin RoHS, wanda ke tabbatar da cewa ba a yi amfani da kayan haɗin da ke da sinadarai masu haɗari ko gurbata muhalli.
Wannan amplifaya na na'ura yana da amfani a fannoni daban-daban na kayan sauti, kamar na'urorin jin ƙwaƙwalwa mai ɗauka, wayar salula, allon kwakwalwa, da sauran na'urorin shan arziki waɗanda ke buƙatar sautin kunne mai inganci. Yin dacewa da nau’ikan impedances na fita yana ba da damar amfani da shi a kan daban-daban na ƙirar kunne.
Duk da cewa MAX9720BEUE+T yana da lambar sashi ta musamman, kamfanin Maxim Integrated na ba da wasu samfuran daban cikin jerin DirectDrive da SmartSense, kamar MAX9717, MAX9719, da MAX9721, waɗanda ƙila su sami bambancin fasali ko sifofi da suka dace da bukatun ƙira na musamman.
MAX9720BEUE+T Manyan Halayen Fasaha
Lambobin Kayan Wuta na MAX9720BEUE+T shi ne MAX9720BEUE+T, kamfanin Maxim Integrated ke ƙera shi. Yana cikin jerin DirectDrive da SmartSense na Maxim da aka ƙera musamman don ingantaccen amfani a cikin na'urorin lasifika masu kan ido da na kunne na stereo.
MAX9720BEUE+T Girman Kunshin
An shirya wannan kayan a cikin fakitin Tape & Reel (TR), yana da encapsulation na TSSOP16, kuma kayan aikin na'urar kamfanin samarwa yana da paketi na 16-TSSOP, wanda ya dace da tsarin ma'aikata na masana'antu na zamani.
MAX9720BEUE+T Aikace-aikace
Ana amfani da MAX9720BEUE+T a matsayin amplifer IC da aka ƙera musamman don na'urorin lasifa kamar headphones, wanda ke ba da damar cin gajiyar ƙarin sauti mai inganci a cikin ayyukan audio na hannu da na gida.
MAX9720BEUE+T Fasali
MAX9720BEUE+T shi ne injin amplifer na Class AB wanda aka ƙera don hoton stereo. Yana da fasali kamar Depop don rage sautukan pop lokacin kunna da kashewa, da kuma kariya ta maganinsu na gajeru da ta hanyar zafi, don tabbatar da aiki lafiya da kwanciyar hankali a kowane yanayi. Wannan IC na iya aiki da wutar lantarki tsakanin 1.8V zuwa 3.6V kuma yana iya bayar da har zuwa 50mW ga kowane ƙofa a kan nau'in nau'in 32 Ohms, wanda ke sa shi dacewa da na'urorin sauti masu ɗorewa da hannu.
MAX9720BEUE+T Siffofin Inganci da Tsaro
MAX9720BEUE+T yana da tsarin tabbatar da inganci kamar RoHS wanda ke tabbatar da cewa ba a yi amfani da sinadarai masu haɗari ba, kuma yana da kariya ta gajeru da ta hanyar zafi da aka gina cikin kayan aikin don ƙarin lafiya da aminci.
MAX9720BEUE+T Dacewa
Yana da dacewa da nau'ikan headphones daban-daban masu buƙatar fitowar ƙafa biyu a cikin tsarin stereo. Hakanan, tsarin rufaffen gyare-gyare na surface mount ya dace da ƙa'idodin masana'antu na zamani.
MAX9720BEUE+T Takaddar Bayanai PDF
Ana samun kyakkyawan PDF na datasheet wanda ke dauke da cikakkun bayanai na MAX9720BEUE+T da kuma shawarwari na aiki. Muna ba da shawarar ku sauke shi kai tsaye daga shafinmu yanzu don samun ingantattun bayanai masu amfani.
Mai Rarraba Inganci
IC-Components shine babban dillalin kayayyakin Maxim Integrated, yana ba da cikakken katalog na MAX9720BEUE+T da sauran kayayyaki. Ku nemi farashi a shafinmu yau domin samun farashi masu gasa da kuma ingantaccen sabis, ta yadda za ku karɓi kayayyaki na asali da inganci cikin sauri.
