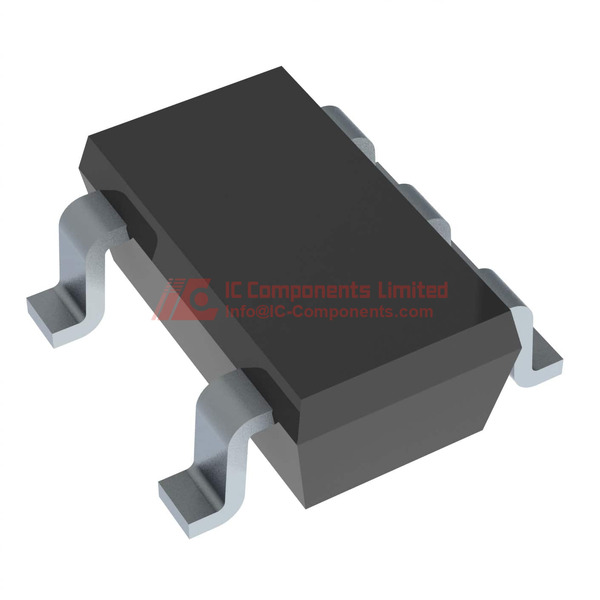

TPS77050DBVR shi ne na'urar da ke sarrafa wutar da ta dace da tsarin linear voltage regulator, wanda Kamfanin Luminary Micro/Texas Instruments ya ƙirƙira. Wannan na'ura na cikin rukuni na "PMIC - Voltage Regulators - Linear" wanda aka shirya domin samar da wutar da ta daidaita kuma ta kasance mai tsayayye.
An tsara wannan na'ura domin magance bukatar naƙarin karamin na'ura mai ƙarko, mai dogon lokaci, da kuma ingantaccen tsarin da ke tabbatar da samun wutar da ta daidaita. Muhimman siffofin TPS77050DBVR sun haɗa da ƙimar fitarwa wutar lantarki na 5V, mafi girman ƙarfin gudu na 50mA, da kuma faɗin yanayin zafi da ke aiki daga -40°C zuwa 125°C. Hakanan tana ƙunshe da kariya daga wutar da ta yi yawa, zafin jiki mai yawa, da kuma kariya daga juyawar abin hawa, wanda ke tabbatar da aiki mai kyau a daban-daban na aikace-aikace.
An saka TPS77050DBVR a cikin ƙaramin akwati na SOT-23-5, wanda ya dace da tsarin da ke da iyaka na sarari. Tsarinta na mount a saman fuskarta yana bayar da damar haɗa ta cikin allon lantarki (PCB) cikin sauƙi. Babban ƙimar ƙin karɓar wutan lantarki (PSRR) na 60dB a 1kHz da ƙananan rage ƙarfin wuta na 0.09V a 50mA suna taimakawa wajen kiyaye ingancin fitarwa ko da an sami sauye-sauye a cikin wutar da ke shigowa.
TPS77050DBVR an yi niyya da shi musamman ga aikace-aikace da ke bukatar wutar da ta daidaita na 5V, kamar na'ura masu ɗauka, kayan amfani na masu amfani, da kayan masana'antu. Ingancinsa mai yawa da kuma ƙarancin ƙimar shigowa (28μA) suna dacewa da na'urar da ke amfani da batir a matsayin tushenta, inda amfani da wuta ke da mahimmanci sosai.
Game da samfuran da za su iya zama madadin ko masu kama, TPS77050DBVR yana cikin gidan TPS77050 na na'urorin regulator na wuta na linear. Wasu samfura a cikin wannan gidan sun haɗa da TPS77001, TPS77015, da TPS77018, waɗanda ke bayar da zaɓuɓɓuka daban-daban na ƙimar wuta da ƙarfin gudu don dacewa da buƙatun ƙira daban-daban.
TPS77050DBVR Manyan Halayen Fasaha
TPS77050DBVR yana da fasali na musamman kamar ƙarfin fitarwa na 5V, iyakar dacewar aiki na zazzabi har zuwa 125°C, da ƙananan farashin masu faɗaɗa ƙarfin ƙarfi na 60dB PSRR a 1kHz. Wannan IC yana da damar tsabar aiki na 50mA tare da ƙarulministran voltage na 0.09V a wannan ƙarfin. Hakanan yana da zaɓi na kunna/Kashewa don sarrafa ƙarfin tsarin, da ƙananan shirin aiki na 28A wanda ke rage amfani da wutar lantarki a lokacin jiran aiki da kuma bada kyakkyawan daidaituwar layi da nauyi.
TPS77050DBVR Girman Kunshin
SOT-23-5, kayan cikin kwalaye na filastik masu rufi, da kuma SC-74A, SOT-753. An tanadar da shi ta hanyar yankan takarda (Cut Tape - CT) da ya dace da ƙananan yankuna na sufuri da ajiya. Wannan ƙungiyar tana da tsarin zafin jiki na aiki mai girma na 125°C da kuma ƙimar PSRR na 60dB a 1kHz.
TPS77050DBVR Aikace-aikace
Ana amfani da TPS77050DBVR a cikin diverse na’urorin lantarki da suka buƙaci daidaita wutar lantarki, kamar tsarin kyamarori, kayan sadarwa, kayan aikin kwamfuta da wasu na’urori masu buƙatar waɗanda suka ƙunshe da na’urori masu gudanarwa na lantarki.
TPS77050DBVR Fasali
TPS77050DBVR na da fasali da suka haɗa da ƙaramin farashin fitarwa na 5V, ikon ƙara wa 50mA, da ƙaramin faɗin ƙarfin shiga na 10V. Hakanan yana da fasalin duba ikon kunna/kashewa, ƙananan caji na kwanciyar hankali na 28A, da kuma ingantaccen tsarin kulawa da layi da nauyi, wanda ke tabbatar da sahihanci da aiki mai dorewa.
TPS77050DBVR Siffofin Inganci da Tsaro
An san wannan samfurin da matakin jin kai daga ruwa (MSL) na 1, yana nufin yana da damar ajiya na lokaci mai yawa a cikin yanayi na yau da kullum. Hakanan ana karewa daga yawan wutan lantarki, zazzabi mai yawa, da kuma taaliki mara kyau na al'ada, don tabbatar da amincin kayan aiki da lafiya.
TPS77050DBVR Dacewa
Za a iya amfani da wannan Linear Voltage Regulator tare da daban-daban na kayan injiniya na IC a cikin kirtani, inda suke buƙatar samar da wutar lantarki mai daidaito da kariya daga gurbin da ke daidaita ko kuma zaɓi na ƙarfi.
TPS77050DBVR Takaddar Bayanai PDF
Don samun cikakken bayani da fasali dalla-dalla, danna don zazzage takaddun bayanai na TPS77050DBVR daga shafin yanar gizon mu. Muna tabbatar da cewa takaddun na bayar da dukkan bayanan da suka dace domin amfani da wannan IC yadda ya kamata.
