The LT1014CN shi ne ƙwararren ƙwayar masu ƙara na gaba na shiri daga Luminary Micro/Texas Instruments. Yana daga cikin rukunin Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps kuma ya dace da ƙa'idar RoHS.
LT1014CN na ƙunshi ƙananan ƙirar masu ƙara guda huɗu masu zaman kansu a cikin fakitin 14-PDIP guda. Yana aiki a cikin kewayon ƙarfi na wutar lantarki daga 4V zuwa 44V (ƙarfi guda) ko ±2V zuwa ±22V (ƙarfi biyu), wanda ya sa ya dace da dama-dama aikace-aikace. Tare da saurin sauyin ƙasa na 0.4V/μs da haɗin gano faɗi na 1MHz, za a iya amfani da LT1014CN wajen gama-gari na ƙara, buffering, da aikace-aikacen kayan aikin lantarki.
Manyan bayanai game da LT1014CN sun haɗa da: ƙimar wutar shigarwa na 12nA da ƙimar lantarki ta bambanta tashin hankali na 60μV, waɗanda ke tabbatar da aiki mai daidaito da inganci. An tsara wannan na'urar don haɗuwa da ƙwarin haƙora (through-hole), kuma tana da ƙimar matsayi na jinɗin mai danshi na 1, wanda ke nuna cewa tana da rayuwar ƙasa marar iyaka.
Manyan fa'idodin LT1014CN sun haɗa da: faɗin amfani, kewayon ƙarfin wuta mai faɗi, da ƙananan amfani da makamashi (350μA na ƙarfi na wuta). Yana da kyau a yi amfani da shi a fannoni daban-daban da suka haɗa da gyara siginar wuta, kayan aikin lantarki, da ƙirar masu ƙara buffers.
Game da dacewa, LT1014CN na daga cikin masu ƙara na gaba da kuma akwai wasu samfura masu kama da shi daga Texas Instruments da sauran masana'antu. Wasu misalai sun haɗa da jerin TL074, TL084, da LF347, waɗanda ke bayar da irin wannan fasali da kuma karko na aiki.
LT1014CN Manyan Halayen Fasaha
Lura na muhalli na fasaha na LT1014CN sun haɗa da tsarin AGC guda hudu a cikin fakiti mai ƙira na DIP mai ɗauke da pin 14. Yana goyon bayan ƙarfin wuta daga 4V zuwa 44V ko kuma ±2V zuwa ±22V, kuma yana aiki a cikin zazzabi daga 0°C zuwa 70°C, yana ba da tabbacin ɗorewa da inganci a aikace-aikacen harka daban-daban.
LT1014CN Girman Kunshin

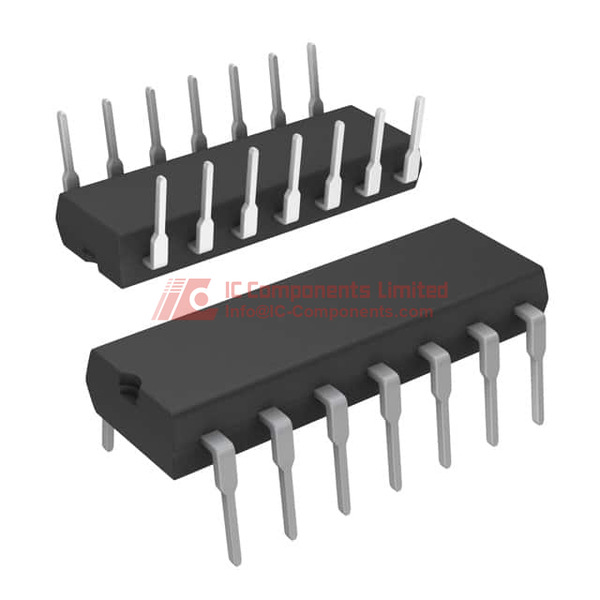

An shirya LT1014CN cikin bagare na tube mai ɗauke da farkon na'ura na 14-DIP (0.300 inci, 7.62mm), da tsarin pin ta hanyar buɗe rami, wanda ke sauƙaƙa shigarwa da haɗin kai a cikin tsarin lantarki.
LT1014CN Aikace-aikace
An dace da amfani a cikin injiniyanci na na'urori, amplification na signali, da buffers a cikin tsarin haɗin wutar lantarki ma na’ura guda, musamman a aikace-aikacen da ke buƙatar ingantaccen sigina da ɗorewa.
LT1014CN Fasali
Wannan amplifier na manufa gaba ɗaya yana da ƙira mai ƙarfi tare da tsari na pin 14, yana da sauƙin haɗawa sannan yana tallafawa ƙarfin wuta daga 4V zuwa 44V ko kuma ±2V zuwa ±22V. Yana da saurin juyawa na 0.4 V/s da kuma iyaka na gain bandwidth na 1MHz, yana bai wa masu amfani da shi damar yin ingantaccen aiki na amplifications. Kananan wutar shigarwa na 12nA da ƙimar ratar offset na 60V na ƙara inganta sahihancin sarrafa sigina.
LT1014CN Siffofin Inganci da Tsaro
Babu gada (lead-free) kuma ya bi ka’idar RoHS, wanda ke tabbatar da kariya ga muhalli da lafiyar mai amfani. MSL 1 (Unlimited) na nuna cewa kayan yana da ƙarfi sosai wajen jurewa danshi da wrinkles na muhalli.
LT1014CN Dacewa
An tsara LT1014CN don haɗawa mai sauƙi cikin damammakin lantarki daban-daban da ke buƙatar amplifier na manufa gaba ɗaya, tare da iyakar zafin aiki na 0°C zuwa 70°C wanda ke tabbatar da aiki mai kyau a cikin yanayi daban-daban.
LT1014CN Takaddar Bayanai PDF
Don cikakken bayani na fasaha da ƙayyadaddun bayanai, za a iya sauke takardar bayanan fasaha ta LT1014CN daga shafin yanar gizon mu, mafi sahihi kuma cikakke.
Mai Rarraba Inganci
IC-Components na kasancewa babban dillali na Texas Instruments, suna ba da ingantattun kayan aiki kawai. Don samun sahihancin siyan LT1014CN da farashi masu gasa, duba shafin yanar gizon mu kuma nemi farashi yanzu.
