AD7524KPZ-REEL shi ne na'urar sauya dijital zuwa analog (DAC) mai kashi 8, wanda kamfanin Analog Devices, Inc. (ADI) ke kera shi. A matsayin kayan tattara bayanai, yana ɗaukar aikin canza siginar dijital zuwa fitowar analog, wanda ke ba da damar ƙirƙirar wutar lantarki ko saƙonni na analog da aka sarrafa don aikace-aikace daban-daban.
Babban siffofin wannan samfurin sun haɗa da ƙudurin bits 8, haɗin bayanai na ɗaya a lokaci guda (parallel), da kuma fitowar wutar lantarki mai ajiyar ruwan. Yana amfani da tsarin R-2R, wanda ke samar da sauyi mai linzami da daidaito. Na'urar tana aiki a ƙarƙashin ƙarfin wuta mai faɗi daga 5V zuwa 15V ga sassan dijital da na analog, wanda ke tabbatar da dacewa da nau'ikan tsarin lantarki daban-daban.
Daya daga cikin ƙalubalen ƙira da AD7524KPZ-REEL ke magancewa shi ne bukatar samun ƙananan na'ura mai sauƙin haɗawa da kuma dacewa da murfin ƙuruciya na dijital zuwa analog. An ƙera samfurin cikin rufin 20-PLCC (9x9), wanda ke ba da damar haɗawa cikin inganci a kan allon injin na lantarki. Har ila yau, yana da lasisin RoHS, wato yana kiyaye muhalli da dacewa da aikace-aikace da dama.
AD7524KPZ-REEL na da lokacin zama masu yawa na kusan nan 500 ns, wanda ke ba da damar ƙirƙirar saƙonni na analog da sauri da kuma amsa cikin sauri. Yana da kyakkyawar linzami tare da haɗin INL da DNL mafi yawa na ±0.5 LSB, wanda ke tabbatar da daidaito da ingantaccen sauyin aiki.
Mahimman fa'idodin AD7524KPZ-REEL sun haɗa da faɗin zafin aiki daga -40°C zuwa 85°C, wanda ya dace da yanayi masu ƙalubale. Bugu da ƙari, tsarin sa na Moisture Sensitivity Level (MSL) na 1 na nuna cewa zai iya jurewa shigar ruwan sanyi ko danshi ba tare da matsala ba, wanda ke sauƙaƙa aiwatar da ƙirƙira da haɗa shi.
AD7524KPZ-REEL na dacewa da nau'ikan tsarin lantarki daban-daban kuma za a iya amfani da shi a fannoni da dama kamar tsarin sarrafa masana'antu, kayan aikin gwaji, da tsarin sarrafa saƙonni na audio/video. Ana yawan amfani da shi a aikace-aikacen da ke buƙatar ƙirƙirar siginar analog daidai, kamar sarrafa servo, potentiometers na dijital, da na'urar daidaitawa.
Ko da yake AD7524KPZ-REEL na musammam ne, akwai wasu samfuran da suka yi kusan daidai ko na madadin daga ADI da sauran kamfanoni. Wadannan sun haɗa da AD7524KNZ, AD7524KPZ, da AD7524KRZ, kowane na ba da zaɓuɓɓuka daban-daban na kayan kwalliya ko ƙayyadaddun aikin don dacewa da bukatun aikace-aikace daban-daban.
AD7524KPZ-REEL Manyan Halayen Fasaha
AD7524KPZ-REEL yana da Fasali na Musamman na Fasaha, wanda ya haɗa da Converter na Digit na 8-bit zuwa Analog, yana amfani da tsarin R-2R resistor ladder, kuma yana da Samun Fitarwa Mai Banbanci. Wannan kayan aiki na zamani ne wanda ke bayar da daidaito mai inganci a fannin fitarwa na bayanai da kuma magance matsalolin watsa sigina a cikin Mahalli daban-daban. Ana tsara wannan na’ura da ƙarfin aiki daga volts 5 zuwa 15, a cikin yanayi daban-daban na aiki, tare da lokacin kaiwa a cikin nanoseconds 500 don amsa mai sauri. Hakanan yana goyon bayan fitarwa mai kariya da kuma haɗin bayanai na parallel don sauƙaƙe ayyukan sarrafa bayanai.
AD7524KPZ-REEL Girman Kunshin

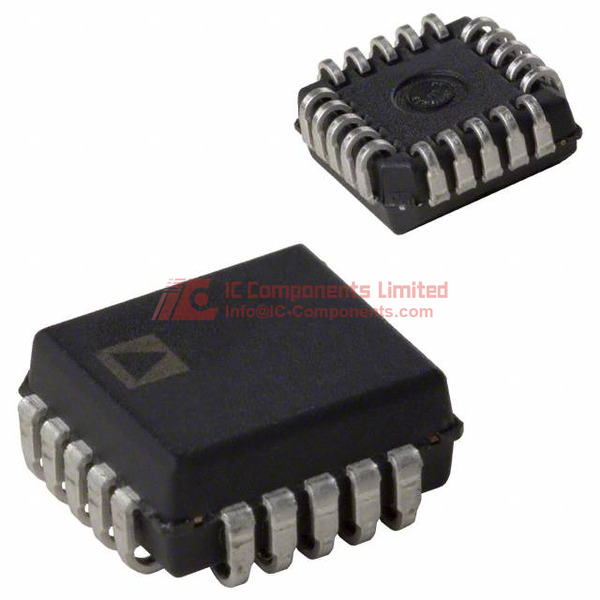

Girman fakitin AD7524KPZ-REEL shine 20-PLCC (9x9), yana da tsarin Surface Mount, an shiryashi tare da tape da reel (TR), kuma ana ɗaurewa a cikin PLCC-28 encapsulation. Wannan ya tabbatar da sauƙin shigarwa a cikin tsarin lantarki daban-daban na masana’antu da kuma injiniyanci.
AD7524KPZ-REEL Aikace-aikace
Ana amfani da AD7524KPZ-REEL a cikin Tsarukan Tattara Bayanai da Ingantaccen Maganin Sigina na Dijital. Yana da muhimmanci wajen sadarwa da tsarin da ke buƙatar ƙididdiga cikin sauri daidai da kwarewa, musamman a cikin ayyukan nazarin bayanai da na’ura mai sarrafa sigina.
AD7524KPZ-REEL Fasali
Na'urar AD7524KPZ-REEL daga ADI (Analog Devices, Inc.) tana da fasali na ci gaba na Converter na Digit zuwa Analog tare da matakin ƙuduri na 8-bit da kuma tsarin R-2R resistor ladder don daidaitaccen fitarwa. An tsara ta don aiki a cikin yanayi masu bambanci, tana da lokacin sauya mai sauri na nanoseconds 500, tana kuma goyon bayan haɗin bayanai na parallel da fitarwa mai kariya yanzu, da kuma amfani da dandaɗi na ƙayyadadden abu na ƙwarewa daban-daban da ke ƙara yawan amfani da wannan na'ura.
AD7524KPZ-REEL Siffofin Inganci da Tsaro
AD7524KPZ-REEL na da ƙa’idar inganci mai ƙarfi, inda ke da Level na Sensitivity na Humidity (MSL) na 1, wanda ke nuni da cewa zai iya zama a nan fiye da lokaci ba tare da matsala ba a cikin yanayi na ɗalibai na iska. Hakanan yana bin ƙa'idodin RoHS, waɗanda ke ƙuntata amfani da wasu sinadarai masu haɗari a cikin kayan lantarki, don tabbatar da muhalli da lafiyar masu amfani.
AD7524KPZ-REEL Dacewa
Wannan na’ura tana aiki da ƙudurin zafin jiki daga -40°C zuwa 85°C, wanda ya sa ta dace da aikace-aikacen masana’antu da kuma na muhalli masu buƙatar ƙarfin aiki mai ƙarfi da juriya.
AD7524KPZ-REEL Takaddar Bayanai PDF
Muna ba da takaddar bayanai ta PDF mai cikakken bayani da kuma ƙwarewa game da AD7524KPZ-REEL. Muna ba da shawarar masu abokan ciniki su sauke wannan takardar daga shafin mu domin samun cikakken bayanin fasaha da fahimtar dukkan damammakin wannan samfurin.
Mai Rarraba Inganci
IC-Components kamfani ne mai daraja a fannin sada da kuma rabon kayayyakin Analog Devices, Inc. Muna ba da ingantattun ƙwayoyin lantarki irin su AD7524KPZ-REEL da ke tsara don saukaka ƙididdiga na dijital zuwa analog a cikin tsarukan tattara bayanai. Domin samun farashi mafi kyau da sabis na musamman, ku nemi ƙididdiga daga shafin mu yau, ku tabbatar da cewa ayyukanku na amfani da kayayyaki masu inganci daga wani mai sayarwa mai aminci.
